B1 Fire Board
Description

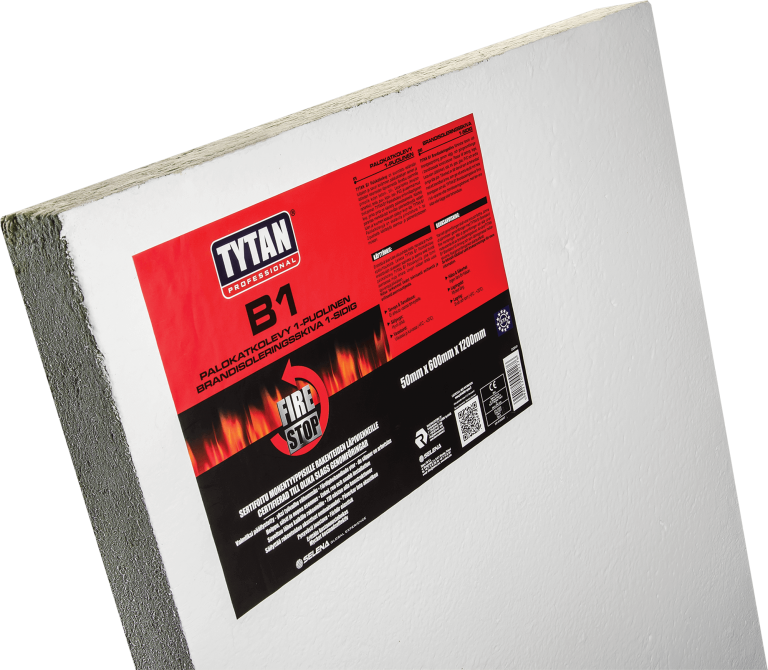

Fire Board has been designed to maintain the fire resistance of separating walls and floors where they are breached by single or multiple building services. The board consists of a rigid stone wool core, sealed with a special coating on one or both sides. The coating provides an important barrier to the passage of fire, smoke and hot gas through the thickness of the board.
Benefits
Fire resistant class EI 240
European Technical Assessment
Easy and quick installation
High sound insulation
Applications
Cable connectors
Copper, steel, plastic and composite pipes
Technical parameters
Density: 3
160-180 kg/m³
Flexibility:
low to medium; 12.5%
Sound insulation:
over 55 dB
Logistic
Product name
A unique code assigned to the respective product variants, specifying their capacity, size and colors.
Content
Pieces per pallet
| Product name A unique code assigned to the respective product variants, specifying their capacity, size and colors. | Content | Pieces per pallet |
|---|---|---|
| B1 Fire Board | 50 mm 1-sided smooth | 80 |
| B1 Fire Board | 50 mm 2-sided smooth | 80 |
| B1 Fire Board | 60 mm 1-sided smooth | 72 |
| B1 Fire Board | 60 mm 2-sided smooth | 72 |
| B1 Fire Board | 50 mm 1-sided ribbed | 80 |
| B1 Fire Board | 50 mm 2-sided ribbed | 80 |
| B1 Fire Board | 60 mm 1-sided ribbed | 72 |
| B1 Fire Board | 60 mm 2-sided ribbed | 72 |
