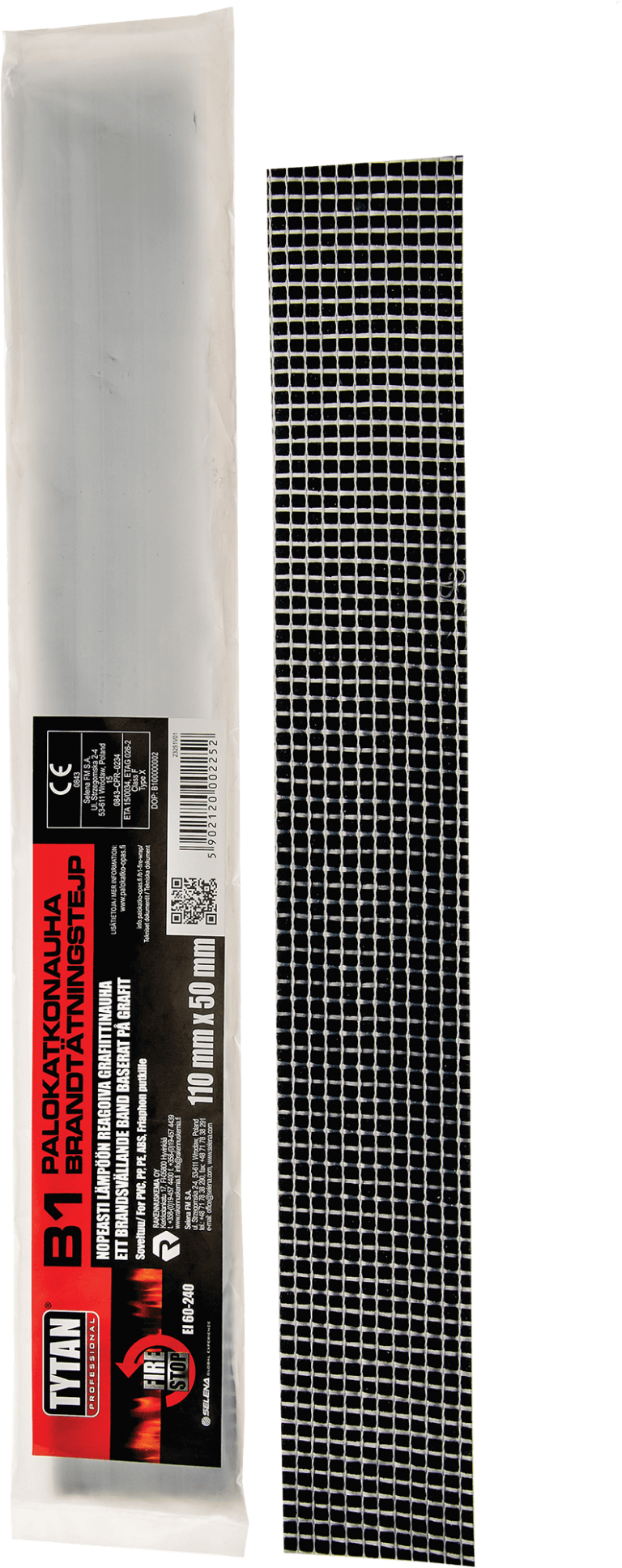

B1 Fire Wrap
Description
B1 Fire Wrap is designed to maintain the fire resistance of fire separating walls and floors when these are breached by continuous plastic pipes or metal pipes with combustible insulation, and may be used in gypsum, masonry or concrete walls as well as concrete floors. Each pipe wrap consists of a graphite based reactive intumescent strip which reacts to heat and closes the opening left by the softening plastic pipe or pipe insulation in a fire.
Benefits
Fire resistant class EI 240
European Technical Assessment
Supplied in many different sizes
Applications
Steel pipes in rubber insulation
Copper, steel, plastic and composite pipes
Technical parameters
Foam yield:
up to 2.1 l
Colour:
red-brown
Reaction to fire:
class E
Shelf life:
12 months
Logistic
Product name
Vastavatele tootevariantidele määratud unikaalne kood, mis määrab kindlaks nende mahutavuse, suuruse ja värvid.
B1 Fire Wrap
Content
55 mm
Pieces per box
25
Pieces per pallet
500
| Product name Vastavatele tootevariantidele määratud unikaalne kood, mis määrab kindlaks nende mahutavuse, suuruse ja värvid. | Content | Pieces per box | Pieces per pallet |
|---|---|---|---|
| B1 Fire Wrap | 55 mm | 25 | 500 |
| B1 Fire Wrap | 82 mm | 25 | 500 |
| B1 Fire Wrap | 110 mm | 25 | 500 |
| B1 Fire Wrap | 125 mm | 12 | 200 |
| B1 Fire Wrap | 160 mm | 12 | 120 |
| B1 Fire Wrap | 200 mm | – | 10 |
| B1 Fire Wrap | 250 mm | – | 10 |
| B1 Fire Wrap | 50 mm x 25 m | – | 10 |
| B1 Fire Wrap | 75 mm x 25 m | – | 10 |
