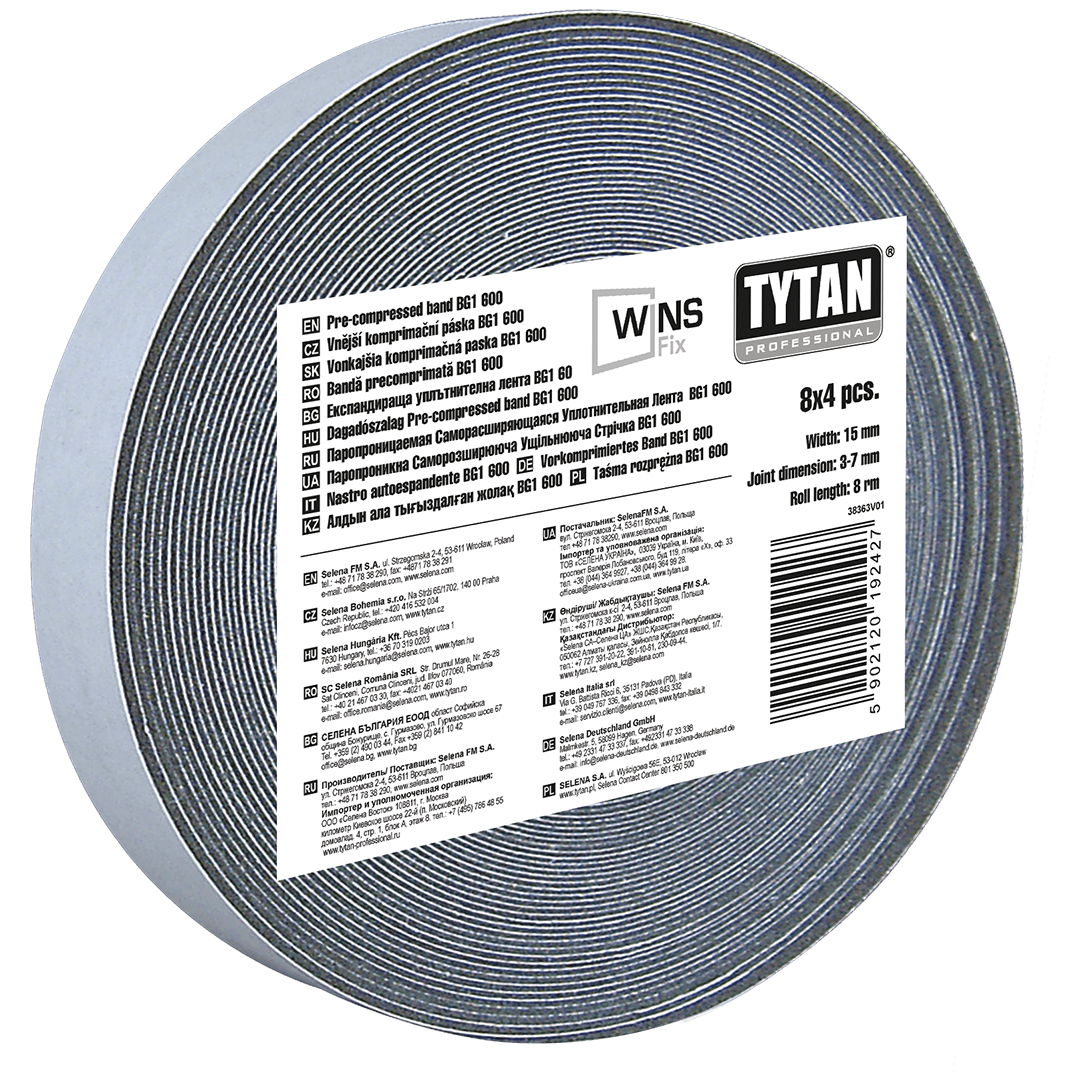

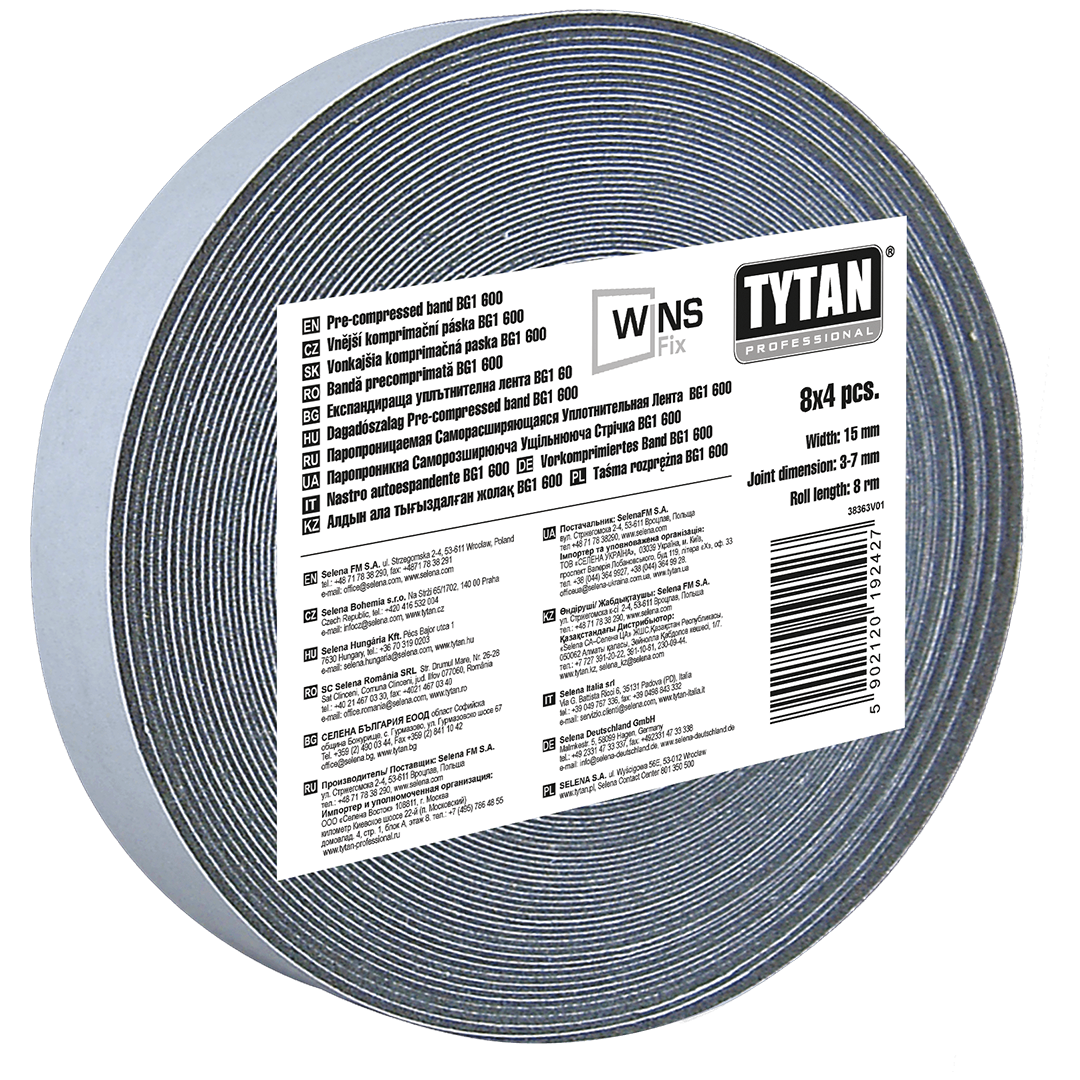

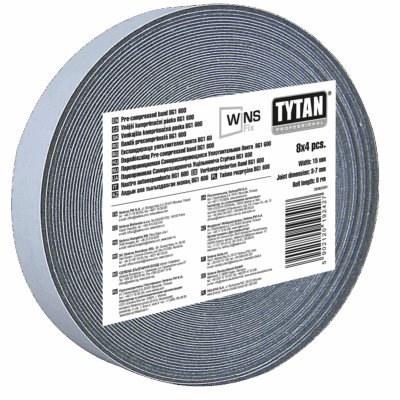

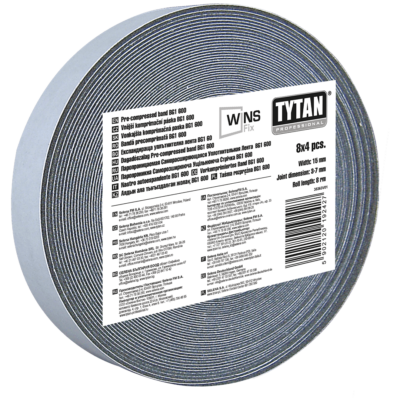

WINS FIX Pre-compressed Band BG1 600
Professional self-expanding tape for sealing in the area of the window sill, high tightness.
Description
TYTAN WINS Fix self-expanding tape is a ready-to-use product for jamb sealing. It creates a vapor-permeable coating (zone 1) that regulates the migration of moisture from the window gap to the external environment of the building which prevents foam deterioration. It is chemically neutral and adheres to most building materials. Due to its flexibility, it is used to seal joints between door frames and reveals in the TYTAN WINS Fix system, wherever there is a jamb.
In combination with the TYTAN WINS Flex insulating foam and the TYTAN WINS internal liquid foil, TYTAN WINS Fix tape creates a water and wind resistant window connection that prevents energy loss risk of fungal growth and condensate accumulation.
Compatible with substrates made of aluminium, PVC, wood, silicates, concrete, cellular concrete, ceramic hollow bricks, bricks, plasters, etc. It does not react with PU foam and sealants based on MS Polymers.
Benefits
- Weather-resistant
- Thermal and acoustic insulation
- Air-tightness up to 600 Pa
- BG1 class in accordance with DIN 18542
Application
- The product is intended for sealing the joints between the frame and the reveal from the external side of the partition around the jamb (zone 1)
Logistic
| Catalogue Number A unique code assigned to the respective product variants, specifying their capacity, size and colors. | Capacity | Number Pcs Per Package | Color |
|---|---|---|---|
| 10046185 | 15 mm / 3-7 mm / 8 rm x 4 pcs | 4 | anthracite |
| 10046193 | 15 mm / 7-12 mm / 8 rm x 4 pcs | 4 | anthracite |
| 10046195 | 20 mm / 10-18 mm / 4 rm x 4 pcs | 4 | anthracite |
