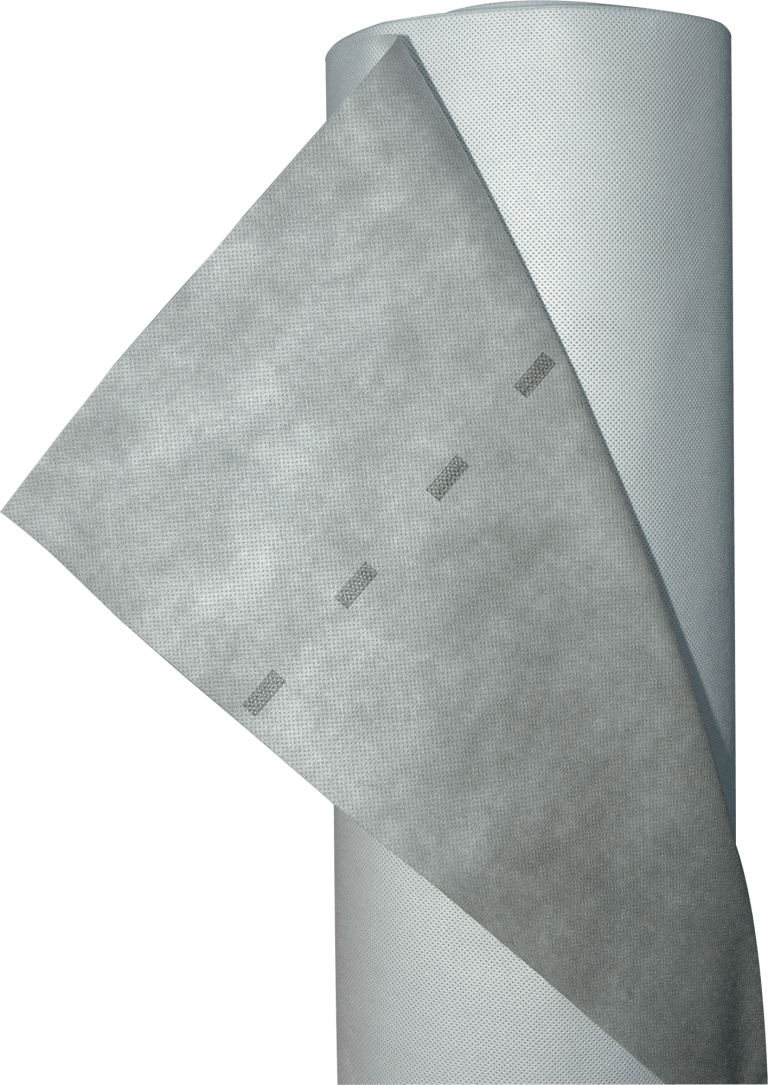

Tytan 100 Breathable Roof Membrane
Description
hree-layer vapour-permeable roof membrane. Made of two layers of polypropylene non-woven and special functional film which ensures high vapour permeability and water sealing of the underlay. Owing to its high vapour permeability, it can be applied directly on insulation and consequently a venting slot is not required between the membrane and the thermal insulation.
Benefits
Highly vapour permeable
Watertight
Ageing resistant
Applications
The membrane is designed for use in the construction industry as an initial roof covering on pitched roofs
Technical parameters
Mass per unit area:
100 g/m² (± 10%)
Tensile strength – longitudinal (MD):
170 N/ 50 mm (± 30%)
Tensile strength – transverse (CD):
90 N/50 mm (± 30%)
Elongation – longitudinal (MD):
55% (± 40%)
Elongation – transverse (CD):
57% (± 40%)
Tear resistance – nail shank; longitudinal (MD):
80 N
Tear resistance – nail shank; transverse (CD):
80 N
Water vapour transmission (Sd):
0.02 (± 0.015 m)
Water sealing:
W1
Reaction to fire:
class F
Flexibility at low temperature:
-20°C
Logistics
Product name
En unik kode som er tilordnet de respektive produktvariantene, og som angir kapasitet, størrelse og farger.
Tytan 100
Dimensions
1.5 m x 50 m
Pieces per pallet
50
| Product name En unik kode som er tilordnet de respektive produktvariantene, og som angir kapasitet, størrelse og farger. | Dimensions | Pieces per pallet |
|---|---|---|
| Tytan 100 | 1.5 m x 50 m | 50 |
